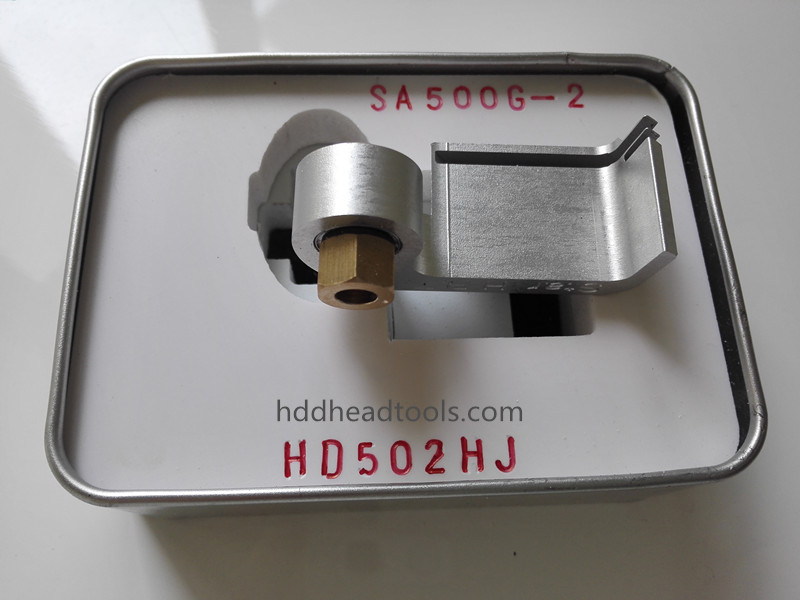

Samsung Desktop HDD 500GB 2-Head Comb

Description

This is one very easy to use and accurate metal head comb for Samsung 3.5″ hard drives whose heads park on the platters’ inner tracks.

If users’ cases meet the following factors:

1, Samsung 3.5″ hard drives;
2, Capacity-500GB
3, 2 heads;
4, Heads parking on the platters’ inner tracks.

Users can find one donor Samsung hard drive and perform easy and secured head swap using this head comb.

How to swap heads with this Samsung head comb:

1, Remove damaged heads from patient drives;
2, Remove damaged heads from this head comb;
3, Remove donor heads from donor hard drive with this head comb;
4, Install the donor heads to the patient hard drives.

If users have two of the head comb, the swap becomes even easier, one is used to remove the patient heads, the other one is used to remove donor heads and install the donor heads directly to the patient hard drive.

If a head swap fail, what can be the reasons. click here to read head swap failure reasons.
