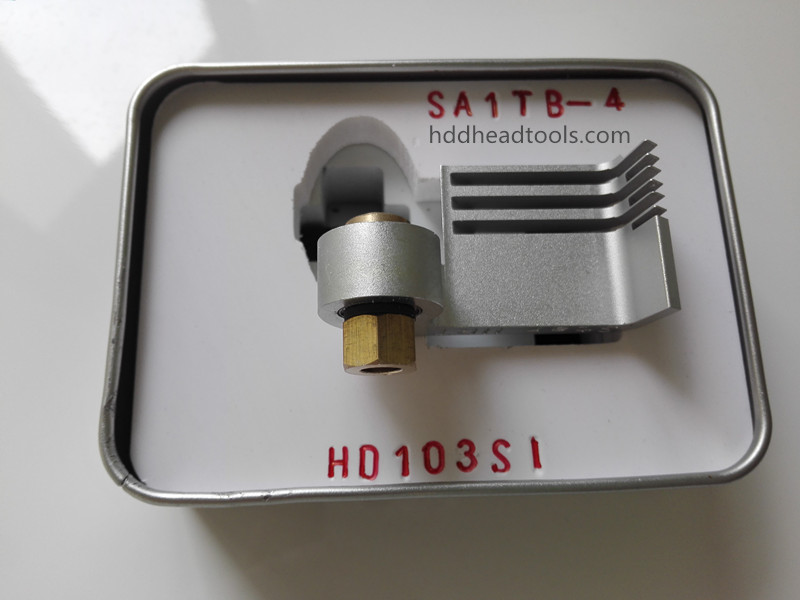

Obviously this is one metal head comb specially designed for Samsung desktop hard drives whose heads park on the platters and located at the inner tracks of the platter.
This Samsung head comb is very easy and accurate to separate the heads and remove the heads off the platters.
If users’ head swap case meet the following factors:
1, Samsung desktop hard drives;
2, Capacity=1 TB;
3, 4 heads;
4, Heads parking on the platters’ inner tracks.
Users can use this Samsung hard drive head comb to swap the heads successfully.
How to swap heads with this Samsung head comb:
1, Remove damaged heads from patient drives;
2, Remove damaged heads from this head comb;
3, Remove donor heads from donor hard drive with this head comb;
4, Install the donor heads to the patient hard drives.
If users have two of the head comb, the swap becomes even easier, one is used to remove the patient heads, the other one is used to remove donor heads and install the donor heads directly to the patient hard drive.
