Western Digital HDD Head Comb Suite

Description

This is one professionally designed head comb suite for western digital 2.5″ and 3.5″ hard drives whose heads are parked on a ramp.

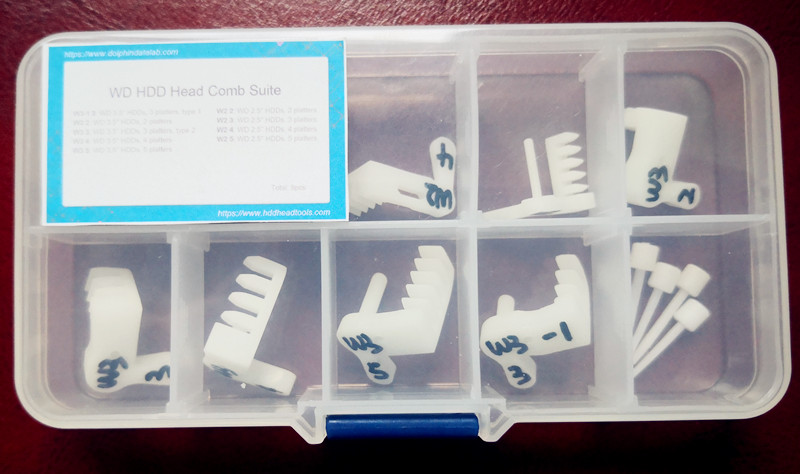

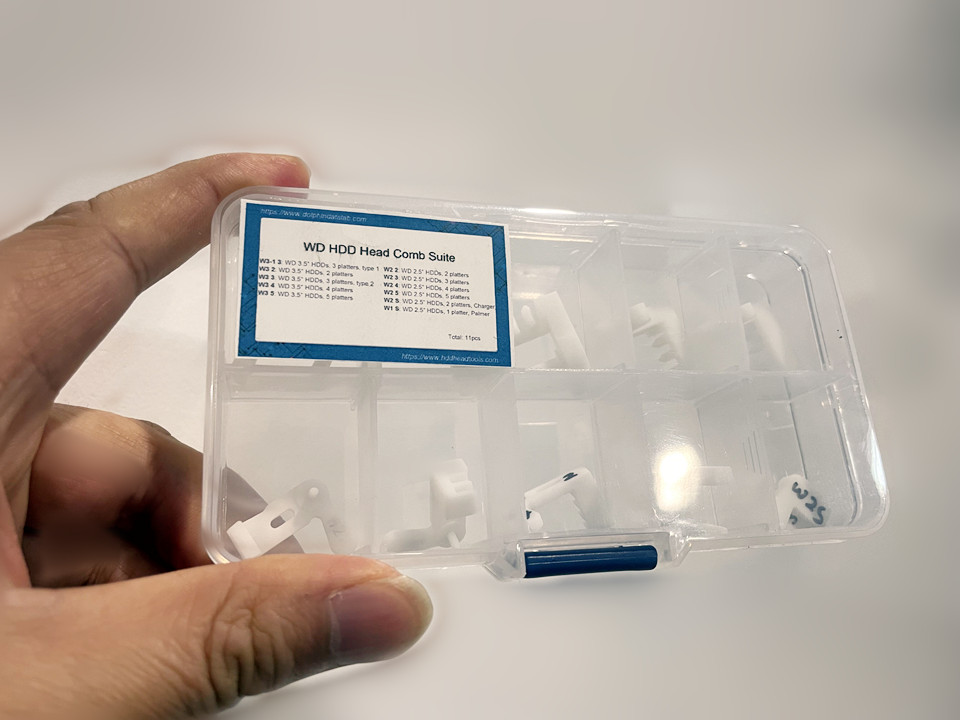

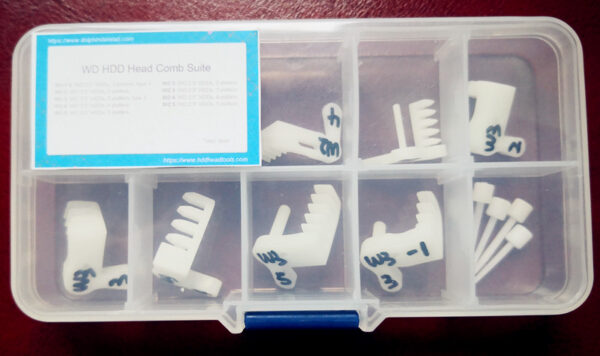

This head comb suite contains the following 14 combs:

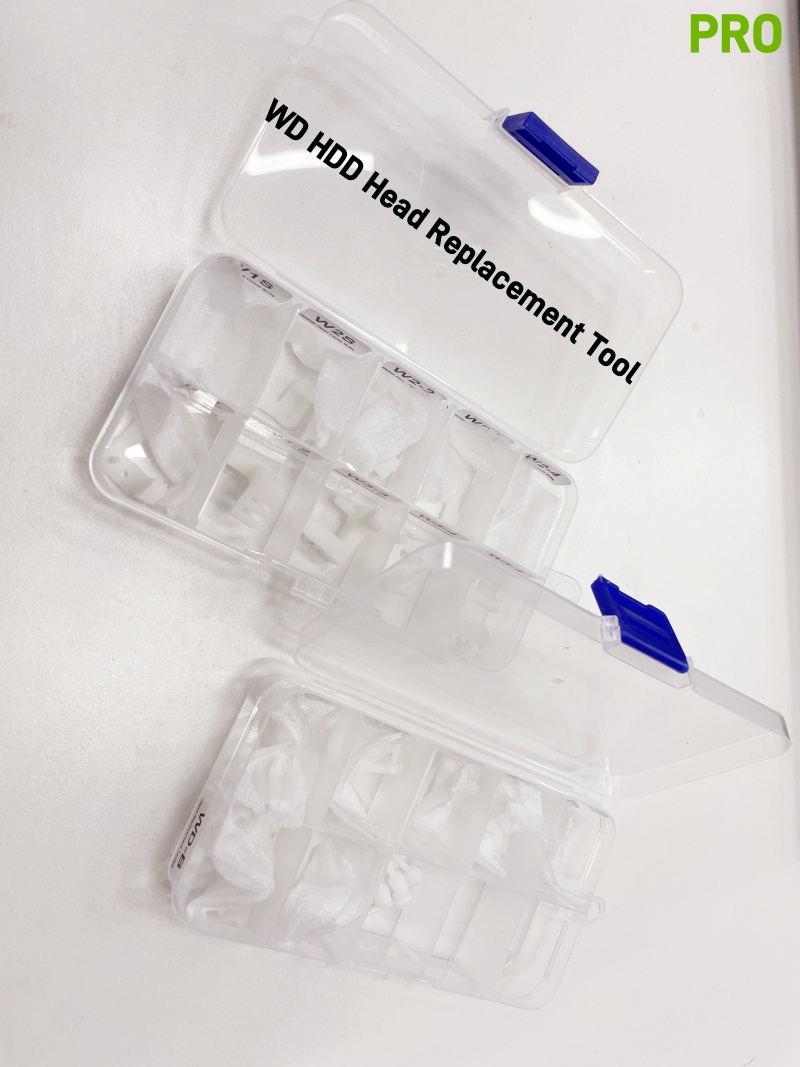

W3-9: WD helium hdd of 10T-16T, 9 platters or similar physical head structure, Newly added head replacement combs Jan.3rd, 2024;

Newly added Western Digital Head Comb for WD 6T 800001 and 4T 810011 on Novemer 1 2023:
W3S, example supported models-WD60PURX-64T0ZY0; WD40EJRX-89AKWY0

Newly added WD Head Comb July 14, 2023
W3 5 S: Western Digital desktop hard drive, 5 platters, WD4002FYYZ

Newly added Head Comb Jan.11, 2022
W1S: For WD SMR Palmer HDD 800066 800069 1 platter 2 heads

Newly added Head Comb April 1st, 2021
W2 S: Western Digtial 2.5″ HDDs, 2 platters, for WD 800065, 800067, 810003 charger hard drives;

Newly added Head Comb Jan.13, 2018

WD2 5: WD new 2.5″ hard drives of WD40NMZW, WD30NMVW 5 platters 10 heads

Newly added WD head comb:

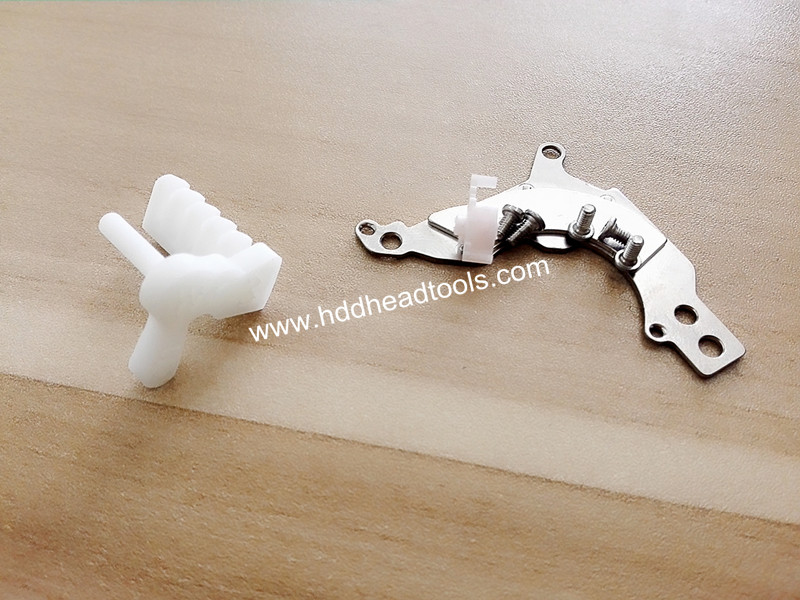

W3 5: WD 6TB HDD head comb, 3.5″ HDDs, 5 platters 10 heads;

Western Digital 3.5″ hard drive combs:

W3 4: Western Digital 3.5″ HDDs, 4 platters
W3-1 3: Western Digital 3.5″ HDDs, 3 platters, type 1
W3 3: Western Digital 3.5″ HDDs, 3 platters, type 2
W3 2: Western Digital 3.5″ HDDs, 2 platters

Western Digital 2.5″ hard drive combs:

W2 4: Western Digital 2.5″ HDDs, 4 platters
W2 3: Western Digital 2.5″ HDDs, 3 platters
W2 2: Western Digital 2.5″ HDDs, 2 platters

These hard drive head combs are used to separate the heads and helps greatly to install the heads to or uninstall the heads from the ramp. It doesn’t guarantee users’ success in head swap because users need to select the right donor heads by themselves.

---

Video: Western Digital Laptop Hard Drive Head Swap
