Description

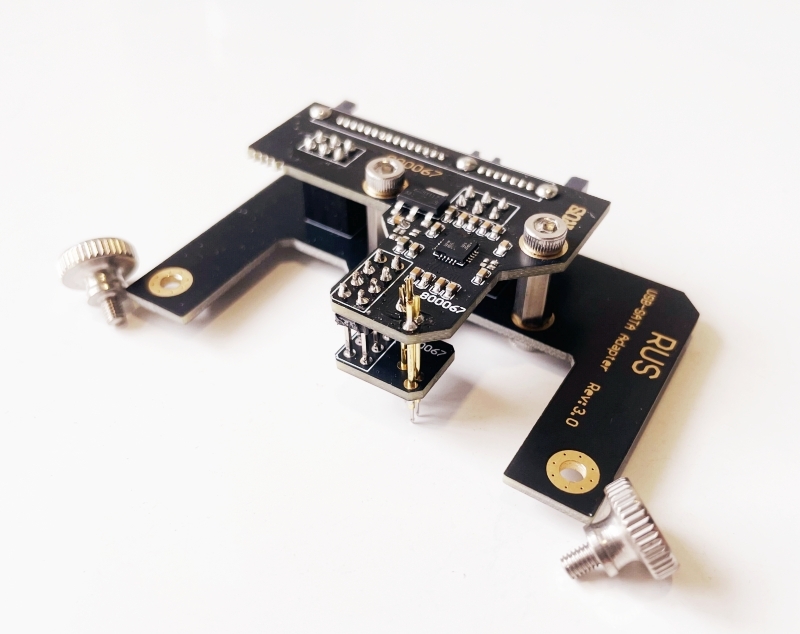

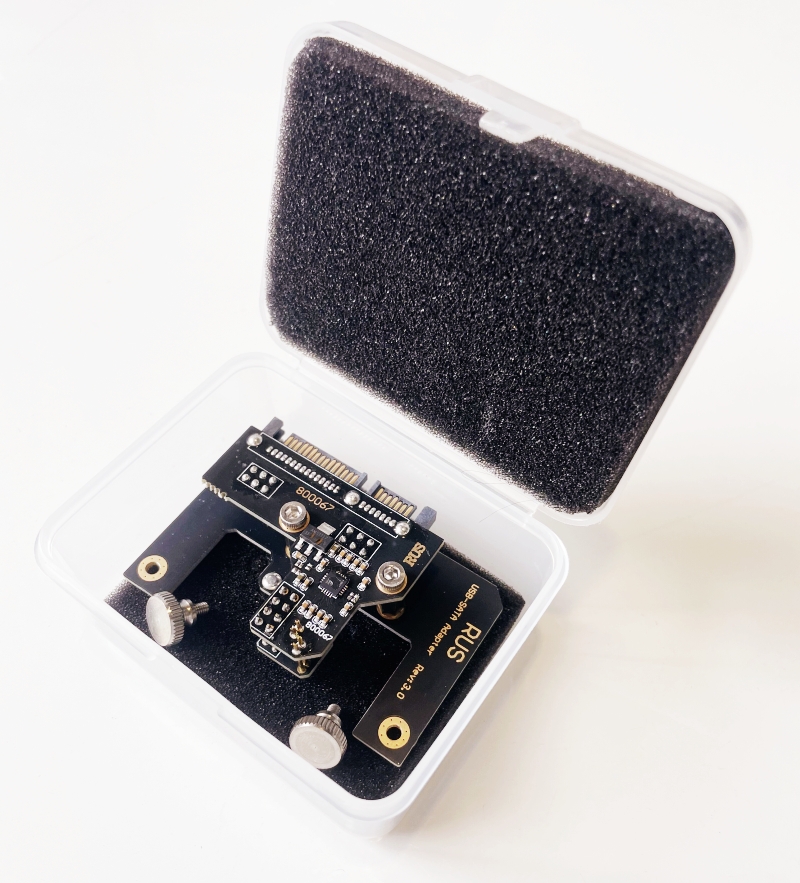

WD 800067 USB-SATA Adapter Smart is one professionally designed SATA connector. Users don’t need any soldering operations and can easily install this adapter on the original 800067 USB PCB and then users can operate on 800067 hard drives by SATA interface.
Please note: WD 800067 USB-SATA Adapter Smart doesn’t contain any data recovery tools or software. Users need to buy hdd firmware repair tools or data recovery hardware tools to work with the firmware area or run disk image or file extraction.
WD 800067 USB-SATA Adapter Smart helps to get the data at the status of decryption off the 800067 drives by SATA interface.
WD HDDs using PCB 2060-800067-001：
WD20SMZW-11JW8S0
WD20SMZW-11JW8S1
WD20SMZW-11YFCS0
WD20SMZW-34JW8S0
WD20SMZW-34JW8S1
WD20SMZW-59JW8S1
WD20SMZW-59YFCS0
WD20SMZW-59YFCS1
WD20SMRW-59YNDS0
WD20SDZW-11Z3CS0
WD20SDRW-11VUUS0
WD20SDRW-34VUUS0
WD15SMZW-11YFCS0
WD15SMRW-11YNDS0
Features:
01: This adapter adopts one special chip which can safely absorb repetitive ESD strikes above the maximum level specified in the IEC61000-4-2 international standard (±8kV contact discharge)
02: Visible pins for easier pins location and connection.
To work with 800067 hdd firmware area, users need to unlock the firmware area first by the following methods:
01: Users need to get 800067 firmware unlock PCB;
02: Users can use special WD hdd firmware repair tool to generate unlock rom and unlock SA on original USB PCB.
No matter what method users are going to use, users need to use HDD ROM chip pin reader to read original rom from 800067 original USB PCB and write original rom to 800067 firmware unlock PCB or users need to write unlock ROM by HDD ROM chip pin reader to original USB PCB.
