Description
G1(Generation 1) HDD Head Comb Suite is one standard designed head comb suite and has a wide range of support from hard drives with 1 platter to 5 platters, 1 head to 10 heads. It support both 2.5″ and 3.5″ hard drives of SATA, IDE, SAS, etc.
From the level of the design and efficiency of use, we call it G1 HDD head comb suite and users can use these combs during their hard drive head swap process and help to complete the physical recovery cases successfully.
These head combs are precisely manufactured to separate the hard drive heads so that users can move the heads safely in or out of the platter parking area or into or out of the parking rack.

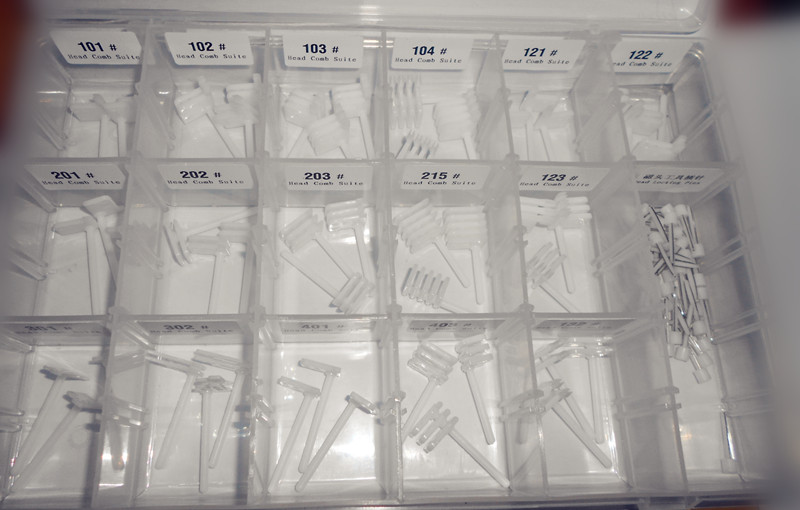

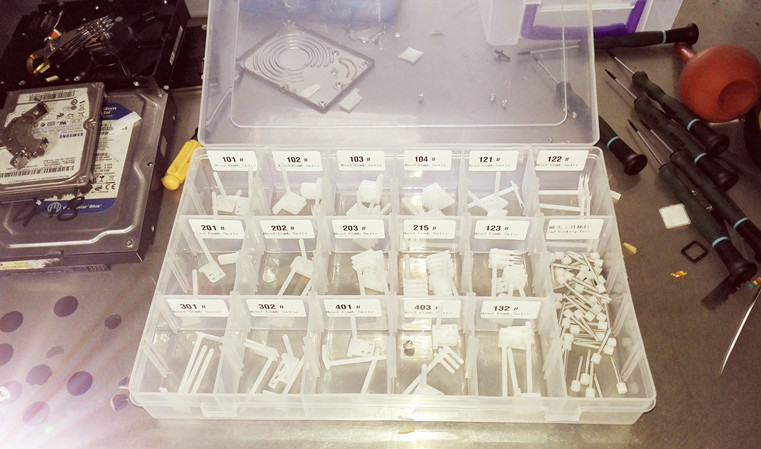

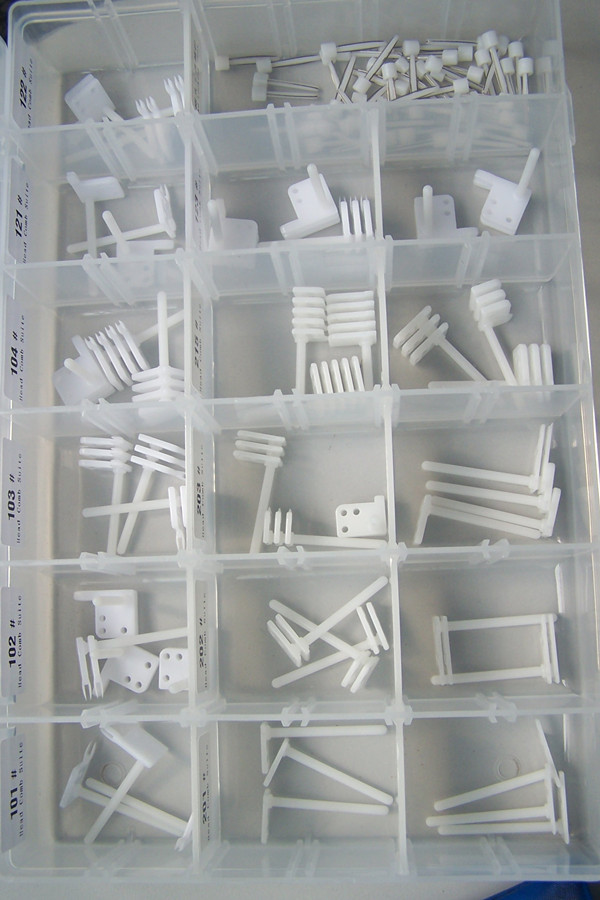

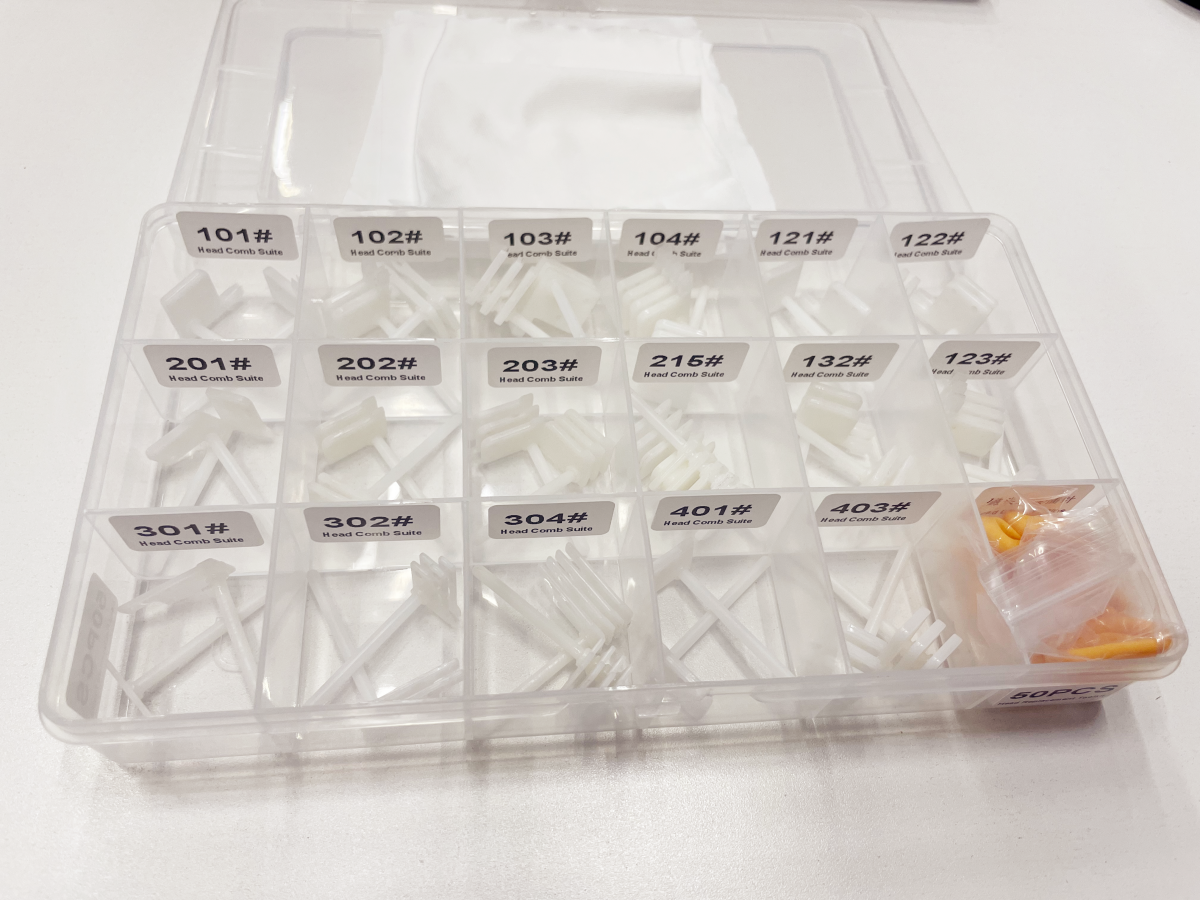

The G1 HDD head comb suite has contained 17 different families of head combs, each family contains two same head combs. Besides the head combs, there’re also some locking pins to use together with the head combs. These locking pins are to fix the head combs in the heads so that they don’t move around to damage the platters’ surface area.
HeadMaster –
101 102 103 104：support head swap of 3.5″ desktop hdds whose heads park on platters;
101-1 platter
102-2 platters
103-3-platters
104-4 platters
HeadMaster –
121 122 123: support head swap of 3.5″ desktop Maxtor hdds
121: 1 platter 2 heads
122: 2 platters, 3 or 4 heads
123: 3 platters, 5 or 6 heads
HeadMaster –
132 133: support head swap of 3.5″ desktop thick hdds whose heads park on platters;
132: 2 platters, 3 or 4 heads
133: 3 platters, 5 or 6 heads
HeadMaster –
201 202 203 215: support head swap of 3.5″ desktop hdds whose heads park on external parking ramp;
201: 1 platter, 2 heads
202: 2 platters, 3 or 4 heads
203: 3 platters, 5 or 6 heads
215: 5 platters, 9 or 10 heads
HeadMaster –
301 302 304: for common 2.5″ hdds(not including slim hdds, slim hdds require special slim head replacement tool)
301: 1 platter, 2 heads
302: 2 platters, 3 or heads
304: 4 platters, 7 or 8 heads
HeadMaster –
401 403: for 3.5″ thick hdds whose heads park on external parking ramp;
401: 1 platter, 2 heads
403: 3 platters, 5 or 6 heads
